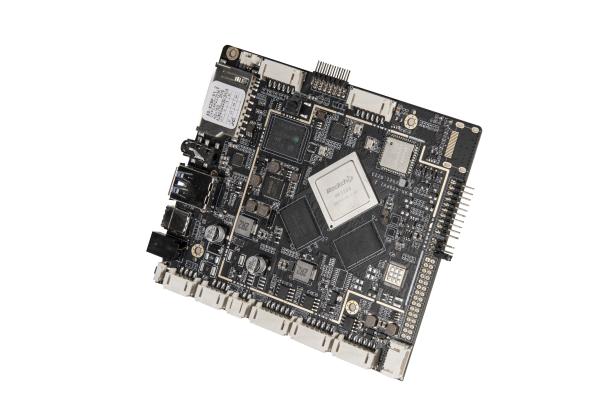

| CPU | Rockchip RK3399 dual-core Cortex-A72+ quad-core Cortex-A53 CPU |
| GPU | ARM Mali-T860MP4 GPU |
| Run and save | LPDDR4 4G |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |
| Display interface | LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
| | EDP screen interface, maximum resolution 4K |
| | MIPI screen interface, maximum resolution 1920*1080 |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen | Provide I2C interface (multi-point capacitive touch) Support USB multi-point capacitive touch, multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch |
| Network | With RJ45 interface, support 10/100 Ethernet |
| | Equipped with Wifi&BT module, supporting Wi-Fi 802.11a/b/g/n/ ac protocol. Support BT4.0 |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, gravity sensor function (optional) |
| Real Time Clock | External real-time clock power supply battery |
| Interface device | Support MIPI interface camera |
| | 6 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals) |
| | 2 groups of UART, 1 group of SPI or 1 group of UART, 2 groups of SPI. Support external serial devices (NFC module, printer, card reader, etc.) |
| | SD card, maximum support 64GB |
| | Class D power amplifier: 3W*2 8 ohms, support microphone |
| | HDMI 2.0 output |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Picture | Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation/image enlargement function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
