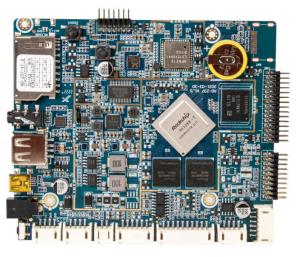

Smart Control RK3288 Android Embedded Board Customized PCB board
Android embedded board Overview:
Z37 is a smart solution adopts with RK3288 quad core chipset,running android 9.0/Android 7.1 /Android 6.0 OS,Linux OS can also be supported.
Integrated with multimedia decoding,LCD driving,Network functions,amplifier in one board.
It compatible with most of popular video&audio format,support display 4K video,could be use as android box for media displaying.
Android embedded board Characteristic:
1. Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).
2. Support EDP interface display screen.
3. Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
4. Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
5. Multi-channel USB interface, serial port.
6. Support 4K video playback and HD 2.0 high-definition output.
7. Strong anti-electromagnetic interference and electromagnetic compatibility.
Android embedded board Specifications
| CPU | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 |
| Main frequency | 1.8GHz |
| RAM | LPDDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G Optional |
| Display interface | LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
| | EDP interface |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
| The internet | With RJ45 interface, support 10/100 Ethernet. |
| | Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function |
| Real Time Clock | Built-in (optional external) real-time clock power supply battery |
| Interface device | Support MIPI interface camera, up to 500W pixels |
| | 3 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) |
| | 3 groups of serial ports. Support external serial port device modules (3G module, NFC module, printer, card reader, etc.) |
| | SD card, maximum support 32GB |
| | Class D power amplifier: 3W*2 8 ohms, support microphone |
| | HD 2.0 output |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
- Basic software specifications
| Operating system | Android 10 |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode | Clock, alarm clock, calculator, recording |
| Language support | multi-lingual |
| Recording | Support MP3, WMA format recording |
| Tool | Calendar |
| | Alarm Clock |
| | Calculator |
| | note |
| | Weather + clock |
| | recording |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| Ebook | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | calendar |
| Input | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Network | Browser -ChromeLite |
| | GOOGLE Market |
| | Email |
| | Gmail |
| | Google talk |
| System Management | APK installer |
| | The original ecological Android system, open root permissions, can be customized product development |
| | Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended |
| | System setting |
| | Google Maps |
| | Global time |
| | Support OTA remote upgrade |
Application Field:
A. Commercial advertising display machine
B. POS machine
C. Digital photo frame advertising machine
D. Touch all-in-one machine
E. Self-service vending machine
Service:
1. PCBA design
2. Housing design
3. Software and hardware customization
4. Logo print on housing
5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function
6. Good quality products
7. full after-sales service with technology support
8.100% QC check before shipping
About Sunchip :
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
